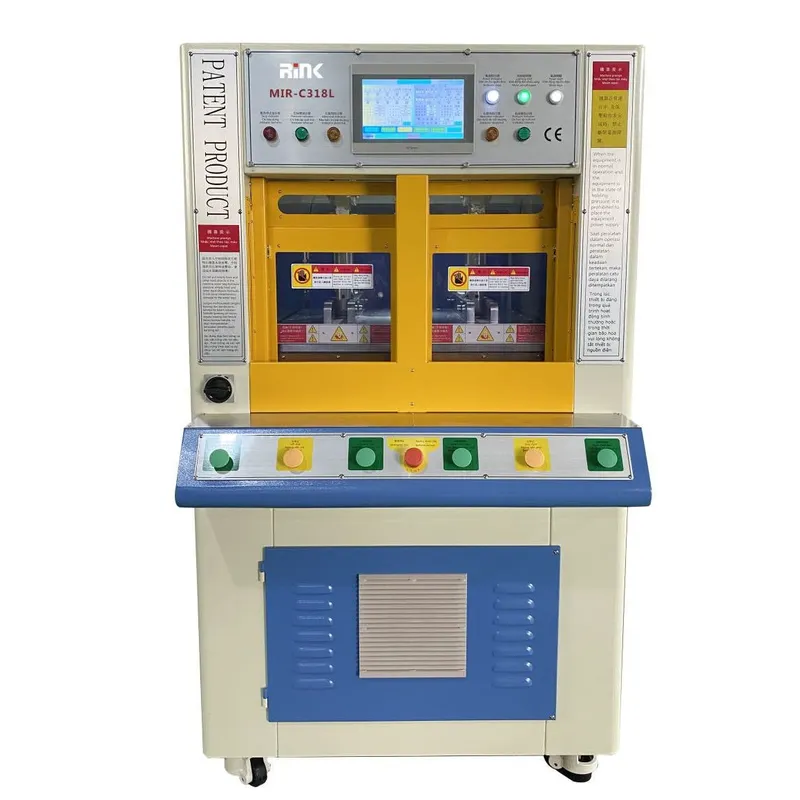

MULTI-AUTOPRESS
MULTI-AUTOPRESS
Modello:MIR-C318L
Aggiungi alla richiesta
Features
    • No need to press the sole module bottom to save production cost.
    • One machine for dual use, can be used for shoe molding and bottom assembly processing.
    • The shoes are being placed, the operation is simple and fact. The machine has a simple configuration and easy maintenance.
    • 360uniform contact pressure in all directions, stable and accurate pressure, which can reduce the degumming rate of side walls and corners.
    • Equipped with infrared light sensor, explosion-proof safety door, emergency stop device, safe and reliable operation.
    • The hydraulic cylinder body bladder can be placed in a space size of 395 x 160 x 230mm (length x width x height).
    • A wide range of shoe shapes can be suppressed, and small-sized childrens shoes can even be applied one pair at a time.
    • The bladder has a long life, and the number of regular sports running shoes is over 110,000 times.
    • This equipment model adopts a full servo screw system to control the hydraulic

cylinder piston, so that the hydraulic cylinder piston is fast quickly and accurately push the pressure of the flame-resistant water-based oil to the 360〫pressure of the lower mold of the shoe bladder.

    • This model adopts high-precision servo system, which is faster and more

accurate than traditional oil pump cylinders and is oil-free. The pump eliminates volatilization of fuel consumption, energy saving, environmental protection, consumption reduction, silence, dynamic operation sound is about 80dB below decibel.

    • The equipment pursues modern technology and innovative technical structure,

adopts integrated circuit and oil circuit system to make the entire mechanism system greatly reduces the maintenance rate, and the daily maintenance cost is low.

    • The principle of this mechanism adopts a fuel-free design, and the equipment can be used without refueling and electrifying when it arrives at the factory.
    • Power consumption: parameters: primary pressure 10KG, holding pressure 2S, secondary pressure 33KG, holding pressure 6S, 240 pairs of electricity per hour per hour, the average power consumption of suppressing a pair of shoes is 0.0042 kilowatt-hours of electricity.
Technical Parameter



MIR-C318L

Machine size

1285mm x 1125mm x 2000mm

Net weight

1910KGS

Operating voltage/power

AC380V 3.8KW/7.5A

Actual power consumption

11 hour≦1 degree 1H≦1 degree1H≦1 degree

Hydraulic oil

Water-based hydraulic oil
